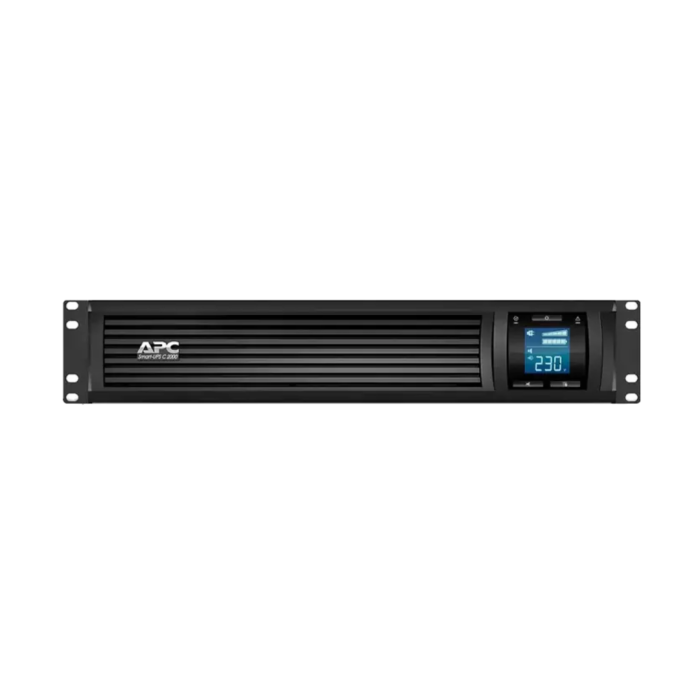

APC Smart-UPS C 2000VA 2U Rack Mountable – SMC2000I-2U

Ensure reliable power protection with the APC Smart-UPS C2000VA 2U Rack Mountable 230V SMC2000I-2U. Ideal for servers and network equipment, it delivers pure sine wave output, advanced LCD monitoring, and efficient performance in a compact rack-mount design.

Specification:

Model: SMC2000I-2U
UPS Type: Line-Interactive
Form Factor: Rackmount (2U)
Capacity: 2000VA / 1300W
Output Voltage: 230V

Power Input

• Nominal Input Voltage: 230V

• Input Voltage Range (for main operations): 170 – 300V

• Input Frequency: 50/60 Hz ±3 Hz (auto-sensing)

• Input Connection Type: IEC-320 C20

• Input Cord Length: 1.83 meters

Power Output

• Nominal Output Voltage: 230V

• Output Power Capacity: 1300 Watts / 2000VA

• Waveform Type: Sine wave

• Output Frequency: 50/60 Hz ±1 Hz (on battery)

• Output Connections:

  • (8) IEC 320 C13

  • (1) IEC 320 C19

• Topology: Line Interactive with AVR (Automatic Voltage Regulation)

Battery & Runtime

• Battery Type: Maintenance-free sealed lead-acid battery

• Typical Backup Time:

  • ~6 minutes at full load (1300W)

  • ~17 minutes at half load (650W)

• Battery Recharge Time: Approximately 3 hours

• Hot-Swappable Battery: Yes

• User Replaceable Battery: Yes

Monitoring & Management

• Interface Port(s): USB, Serial

• SmartSlot: Yes (for optional network management card)

• Display Type: LCD Status Display – provides system status and diagnostics

• Alarms: Audible alarms for battery mode, low battery, and overload

Protection Features

• Surge protection

• AVR to correct low/high voltage without battery

• Overload protection

• Cold-start capable

• Energy-efficient Green Mode

Environmental Specifications

• Operating Temperature: 0 – 40°C

• Operating Relative Humidity: 0 – 95% (non-condensing)

• Audible Noise Level: ~45 dBA

Physical Specifications

• Rack Height: 2U

• Dimensions (H x W x D): 86 x 432 x 635 mm

• Weight: ~32.1 kg

• Color: Black

• Mounting: Rackmount

Best Suited For:

• Rack-mounted servers

• Networking equipment

• Data centers

• Enterprise IT environments
